Maximize efficiency with baffles in tank containers

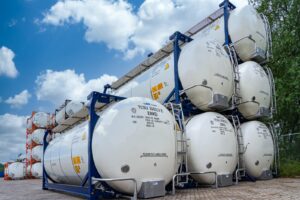

A baffle tank container is a 20‑ft intermodal ISO tank equipped with internal baffle plates to damp liquid surge. The core elements:

• Pressure vessel and materials
  • 316L stainless-steel cylindrical shell with dished ends, typical design pressure ~4 bar for food/chemical service; hydrostatic test often 4–6 bar. Corrosion-resistant, welds ground and passivated for hygiene and durability.
• Internal baffles
  • 3–5 longitudinal/transverse plates welded into the shell. Each baffle includes radiused openings sized to permit controlled flow, CIP coverage, and full drainage.
  • Purpose is to break up liquid momentum, reducing free-surface effects and sloshing amplitude during acceleration, braking, rail shunting, and vessel motion.
• Hygiene and cleanability
  • Food-grade variants feature polished interiors (Ra ≤ 0.8 µm), CIP spray balls positioned so that baffle shadowing is minimized, and compliant elastomers for gaskets (EC 1935/2004, FDA).
  • Aperture geometry and placement are validated by riboflavin or spray-pattern tests to ensure wash coverage.
• Frame and compliance
  • Mounted in a standard 20‑ft ISO frame to ISO 1496; CSC plated; UN portable tank approvals (e.g., T11/T14 depending on pressure rating and cargo class).
  • Periodic examinations: intermediate at ~2.5 years and thorough at ~5 years under IMDG/ADR/RID.
• Connections and safety
  • DN500 manlid common; 2–3" bottom outlet with internal/external valves; pressure-relief valve typically set ~4.0–4.4 bar with flow sized to cargo vapour generation.
  • Thermowells, sampling valves, and insulated valve boxes on food-grade units.

Why the baffles matter in practice:

• They reduce the effective slosh length, cutting peak dynamic forces transmitted to the frame and twistlocks.
• They stabilize pump NPSH at discharge by limiting rapid level oscillations near the outlet, which helps maintain continuous flow without cavitation.
• They make partial-fill operations feasible. With, say, 60–80% fill for multi-drop routes, a baffled tank stays controllable where a non-baffled tank would feel “loose” and risk over-braking incidents.

Dimensional touchpoints: external footprint remains ~6,058 × 2,438 × 2,591 mm (L×W×H), with nominal volumes around 24,000–26,000 L depending on insulation and baffle arrangement. Tare weight typically sits a few hundred kilograms above a non-baffled equivalent due to the added steelwork.

The value shows up in safety, handling, and throughput. You feel it on the road and at the discharge bay.

• Stability and safety in motion
  • Internal baffles reduce free-surface movement, lowering peak longitudinal forces during braking and shunting. Drivers report more predictable handling, and incident data generally shows fewer surge-related near misses.
  • On rail, damped slosh reduces coupler shock amplification. On deck, roll-induced liquid transfer is moderated, easing tie-down loads.
• Partial-load flexibility
  • Multi-drop distribution becomes practical. Running at 60–90% fill without severe surge means you can deliver to two or three customers in sequence using one tank, improving asset utilization and reducing empty repositioning.
  • Better compliance with road-axle limits by allowing precise partial fills while maintaining controllability.
• Faster, cleaner unloading
  • Surge damping stabilizes suction conditions. Pumps stay primed, and flow is steadier, cutting the “stop–start” effect that adds minutes and introduces air into the system.
  • Less foaming for surfactants and beverages thanks to minimized agitation—improves product presentation and reduces wait time before quality sampling.
• Lower structural stress and maintenance
  • Reduced dynamic loads extend the life of supports, saddles, and welds. PRV chatter risk drops when transient pressure spikes are flattened.
  • Valve assemblies and bottom outlets see fewer sudden pressure fluctuations, which helps seal longevity.
• Quality protection for shear‑sensitive cargo
  • By smoothing bulk movement, baffles mitigate violent slosh impacts that can aerate or shear delicate emulsions. Combined with gentle pump curves, this safeguards rheology targets.
• Hygiene with the right design
  • Properly radiused apertures and validated spray patterns ensure CIP reaches behind baffles. Cleaning cycles remain within standard time/temperature/flow envelopes, so you keep turnaround predictable.

Selection guidance:

• Choose baffle count and aperture design aligned to viscosity and intended fill levels. Higher-viscosity cargo can work with larger cut-outs; low-viscosity liquids benefit from more restrictive patterns to curb surge.
• Verify CIP coverage with test certificates if you run frequent product changeovers. Look for documentation of Ra values and spray-ball mapping.
• For heated or insulated versions, ensure heat distribution past baffles—insulated valve boxes and circulation paths prevent cold spots that slow discharge.

They’re used for liquids where motion control, partial-load flexibility, and stable discharge are essential.

• Food and beverage
  • Edible oils, glucose/fructose syrups, liquid sweeteners, wine musts, and juices. Baffles cut agitation and foaming during transit and unloading. Partial fills enable multi-stop delivery to bottlers or processors without compromising handling.
• Chemicals and specialties
  • Surfactant blends, detergents, glycols, alcohols, and solvents with low viscosity. Slosh damping reduces surge loads and improves safety on road/rail legs. For shear-sensitive emulsions, moderated movement preserves structure.
• Industrial fluids
  • Lubricant bases, process oils, antifreeze concentrates, and water-treatment solutions. Predictable discharge helps batch scheduling at destination and reduces line changeover time.
• Multi-drop and regional distribution
  • Shorter routes with multiple customers, where a traditional unbaffled tank would be restricted to near‑full fills to stay controllable. Baffled tanks keep operations compliant and efficient.

Operational patterns that benefit the most:

• Lanes with frequent braking and cornering—urban or regional delivery legs.
• Winter corridors where road grip and stopping distances already tax drivers; mitigating surge aids control.
• Sites with tight unloading windows, where a steady pump curve avoids backups on the loading bay.

If your liquid cargo often ships part-full, foams easily, or needs reliable pump suction without cavitation, a baffle tank container turns a difficult lane into a routine one. At tankcon.com, the engineering focus is on baffle geometry that balances surge reduction with cleanability, so you get safer handling on the move and consistent turnaround at the wash bay.

Baffle tank containers share the same 20‑ft ISO footprint but differ in how they manage liquid motion, hygiene, temperature control, and compatibility. Choosing the right type hinges on viscosity, fill level strategy, and cleaning/changeover frequency.

• Standard baffled ISO tanks (single-compartment)
  • 316L stainless-steel pressure vessel with 3–5 internal baffle plates. Apertures are radiused to reduce surge while preserving clean-in-place (CIP) coverage and full drainage.
  • Best for low- to medium-viscosity liquids where slosh control, predictable braking, and steady discharge are priorities.
• Food-grade baffled tanks
  • Polished interior finish (Ra ≤ 0.8 µm), CIP spray balls positioned to limit “shadow” zones behind baffles, and food-contact gaskets compliant with EC 1935/2004 and FDA.
  • Designed for edible oils, syrups, juices, wine musts. Aperture geometry is validated through spray pattern or riboflavin testing to prove wash quality between product campaigns.
• Chemical-grade baffled tanks
  • Wider elastomer options (EPDM, FKM, PTFE) and PRV/vent sizing tuned for cargo properties. Weld procedures and passivation target corrosion resistance for a broad SDS portfolio.
  • Used for surfactants, solvents (where permitted), glycols, and detergent bases where surge damping prevents pump cavitation and foaming.
• Insulated baffled tanks
  • Polyurethane insulation (typically 50–100 mm; overall U‑value ~0.3–0.4 W/m²K when new) with cladding. Limits heat gain/loss on longer lanes and at exposed terminals.
  • Often paired with heated variants for viscosity control in cool climates.
• Heated baffled tanks
  • Electric heating elements or hot-water/glycol tracing to maintain +20°C to +50°C for viscous cargoes. Insulated valve boxes and heat pathways past baffles prevent cold spots at the outlet.
  • For products that gel or thicken near ambient, heating plus baffles yields both safe handling and prompt unloading.
• Multi-baffle vs. low-baffle designs
  • High baffle density and smaller apertures maximize surge reduction for low-viscosity liquids and partial-fill routes (60–90%).
  • Lower baffle density improves CIP flow and changeover speed for operators with frequent product switches, at the cost of slightly more slosh.
• Special-alloy or high-pressure options
  • For demanding chemistries or elevated design pressures. Not common for food cargoes but available where the SDS or lane risk profile requires upgrades (e.g., duplex stainless, 316Ti).

Selecting among these types starts with your lane and liquid behavior: if you run multi-drop, part‑full, and low-viscosity products, emphasize more aggressive surge damping and dual probes at the outlet for stable NPSH. If your bottleneck is wash bay throughput, prioritize aperture geometry validated for fast, complete CIP.

The external envelope follows 20‑ft ISO standards so you interchange seamlessly across road, rail, and sea. Internal geometry, baffle count, and thermal options nudge capacity and weights, which you should factor into payload planning.

• External frame (typical)
  • Length: ~6,058 mm (20 ft)
  • Width: ~2,438 mm (8 ft)
  • Height: ~2,591 mm (8 ft 6 in); some high‑cube frames at ~2,896 mm (9 ft 6 in) exist for special builds or added equipment clearance
  • Handling: corner castings per ISO 1496; fork pockets, lifting lugs, and twistlock compatibility
• Internal tank and capacity
  • Nominal volume: ~24,000–26,000 L depending on baffle configuration, insulation thickness, and dome geometry
  • Shell: 316L stainless-steel cylinder with dished ends; typical design pressure ~4 bar for food/chem service; hydrostatic test often 4–6 bar
  • Manlid: commonly DN500; bottom outlet: 2–3" with primary and secondary closures; sample valve and thermowells as standard options
• Weights and payload
  • Tare weight: ~3,900–5,400 kg; baffled and insulated/heated variants sit toward the higher end due to added steelwork and equipment
  • Maximum gross weight (MGW): up to ~36,000 kg subject to certification and route limits
  • Payload planning: with 25,000 L at 1.00 kg/L, product mass ~25,000 kg; add tare ~4,800 kg → gross ~29,800 kg, leaving axle and route margin for most corridors. Denser products (≥1.10 kg/L) require ullage planning and axle checks
• Thermal and hygiene details
  • Insulation: polyurethane foam 50–100 mm; U‑value ~0.3–0.4 W/m²K when new
  • CIP: spray-ball coverage mapped to reach behind baffles; drain angles and aperture radius support complete emptying
• Practical clearances and connections
  • Outlet height from ground: verify against your bay to avoid awkward hose angles and pump priming issues
  • PRV set pressure typically ~4.0–4.4 bar; verify flow coefficient vs. heating scenarios
  • Power inlets only on heated variants; cable routing and breaker sizing should match the unit’s max draw

Dimensional nuance that helps on day one: a few millimeters on outlet centerline height can decide whether gravity prime works cleanly; high‑cube frames may need specific ship slots; and increased tare on insulated/heated baffled units slightly trims net payload compared to plain stainless versions.

Baffled tanks shine wherever liquid movement would otherwise compromise safety, product quality, or unloading performance—especially on partial fills and stop‑start routes.

• Multi-drop distribution with partial loads
  • Regional deliveries to multiple receivers using one tank, operating safely at ~60–90% fill without harsh surge during braking and cornering. This improves asset turns and reduces empty repositioning.
• Low-viscosity, foam-prone, or shear‑sensitive liquids
  • Surfactant blends, detergents, beverages, and light alcohols benefit from reduced agitation. Less foaming at discharge means quicker sampling and fewer pauses to let bubbles dissipate.
• Food and beverage campaigns with frequent changeovers
  • Edible oils, syrups, juice concentrates, and wine musts. Baffle geometry designed for CIP makes wash cycles predictable, which keeps campaign transitions tight and contamination risk low.
• Industrial and process fluids needing steady pump suction
  • Glycols, coolant concentrates, lubricant bases, and water‑treatment solutions. Damped level oscillations maintain pump NPSH, reducing cavitation and stabilizing flow rates.
• Lanes with dynamic handling environments
  • Urban road legs with repeated braking, rail corridors with shunting impacts, and coastal legs with vessel roll. Baffles cut peak dynamic forces transmitted to the frame and support fixtures.
• Heated operations for viscosity control
  • When paired with heat tracing, baffles prevent sudden slosh that can expose cold surfaces and create localized thickening near outlets. The result is a smoother, faster unload with fewer temperature‑related pauses.

Operational pointers to capture the full benefit:

• Align baffle density to viscosity and typical fill level; lighter liquids and partial loads gain the most from tighter aperture patterns.
• Validate CIP coverage if you switch products often; look for documented spray-ball mapping and Ra values.
• For foaming cargoes, combine baffles with gentle pump curves and anti‑foam procedures at the bay to protect product quality and keep schedules honest.

If your routes include partial fills, tight urban moves, or products that don’t tolerate agitation, a baffle tank container brings control back into the process—steadier handling on the road, cleaner unloading at destination, and predictable turnaround in the wash bay under the tankcon.com operating standard.

Baffle tank containers are built to keep liquids stable in motion and predictable at discharge. The difference is inside the shell: welded baffle plates with radiused apertures interrupt slosh without trapping product, so you get safer handling and steadier flow on the pump.

Core construction and safety

• 316L stainless-steel pressure vessel with dished ends; typical design pressure around 4 bar for food/chemical service, hydrostatic test commonly 4–6 bar.
• 3–5 internal baffles, aperture geometry tuned to reduce free-surface effects yet allow full drainage and clean-in-place (CIP) coverage.
• Pressure-relief valve generally set ~4.0–4.4 bar with flow sized to heating and surge scenarios; CSC plate and UN portable tank approvals (e.g., T11/T14 depending on build).

Hygiene and cleanability

• Food-grade finishes polished to Ra ≤ 0.8 μm; CIP spray balls mapped so “shadow zones” behind baffles are minimized.
• Elastomer options by duty: food-contact gaskets for edible cargoes; EPDM/PTFE/FKM for chemicals. Welds ground and passivated for corrosion resistance and hygiene.
• Drain angles and baffle cut-outs designed for complete emptying to keep turnaround times consistent.

Motion control and discharge performance

• Baffles limit surge during braking, cornering, rail shunting, and vessel roll, which improves vehicle controllability and lowers dynamic loads on the frame.
• Stabilized liquid level at the outlet maintains pump NPSH, cuts cavitation risk, and reduces foaming for surfactants or beverages—shorter stop–start cycles during unloading.
• Partial-load operation becomes practical in the ~60–90% fill range, enabling multi-drop routes with predictable handling.

Thermal and auxiliary options

• Insulated variants with polyurethane foam (typically 50–100 mm; overall U‑value about 0.3–0.4 W/m²K when new) to limit heat gain/loss.
• Heated versions with electric or hot-water/glycol tracing maintain +20–50°C for viscous cargo, paired with insulated valve boxes to prevent cold spots near outlets.
• Telemetry for temperature (on heated/insulated units), GPS, and door/tamper events; exportable logs at 5–15 minute intervals if your QA process requires documentation.

Handling and interfaces

• Standard 20‑ft ISO frame (approx. 6,058 × 2,438 × 2,591 mm), corner castings and fork pockets per ISO 1496 for intermodal compatibility.
• DN500 manlid typical; 2–3" bottom outlet with primary/secondary closures; thermowells and sample valves for process control.
• Tare mass usually in the ~3,900–5,400 kg range depending on baffle density and thermal equipment; plan payload accordingly.

What pays off operationally is the combination: better control on the road, steadier suction at the pump, and cleanability that preserves fast changeovers between campaigns.

Following your instruction, pricing information will not be provided. If helpful, I can outline a non-pricing cost framework—cycle times, payload effects from added tare, energy estimates for heated/insulated variants, maintenance intervals, and inspection schedules—so you can evaluate total cost drivers without quoting figures.

They’re used wherever liquid motion needs to be tamed for safety, quality, and throughput—particularly on partial fills and routes with frequent starts and stops.

• Multi-drop and regional distribution
  • Operating safely at ~60–90% fill makes two or three consecutive deliveries feasible with one tank. Surge damping keeps handling predictable in urban traffic and tight schedules on track.
• Low-viscosity or foam-prone products
  • Surfactant blends, detergents, beverages, light alcohols, and solvents benefit from moderated agitation. Less foaming at the bay speeds up sampling and reduces pauses during discharge.
• Food and beverage campaigns with frequent product changeovers
  • Edible oils, syrups, juices, and wine musts move reliably with baffle geometry validated for CIP, limiting cross-contamination risk and keeping wash cycles within set time/temperature/flow envelopes.
• Industrial and process fluids needing steady pump conditions
  • Glycols, coolant concentrates, water‑treatment chemicals, and lubricant bases discharge more consistently because outlet level oscillations are damped, protecting pump NPSH and reducing cavitation.
• Heated operations for viscosity control
  • Pairing baffles with heat tracing at +20–50°C shortens unloading for viscous cargoes by keeping flow continuous and avoiding cold‑spot thickening near outlets.
• Dynamic transport environments
  • Rail shunting, road braking, and ship roll induce liquid movement; baffled tanks cut peak dynamic forces transmitted to the frame and fittings, which helps component longevity and operator confidence.

If your liquid cargo often ships part‑full, foams easily, or demands steady suction for efficient unloading, baffle tank containers deliver the practical control that keeps movements safe and discharge timelines predictable under tankcon.com’s operating standards.
